BS-6000AT Metallurgical Microscope
Rp 29.000.000| Kode | BM600002 |
| Stok | Tersedia (1) |
| Kategori | Mikroskop |
Indent

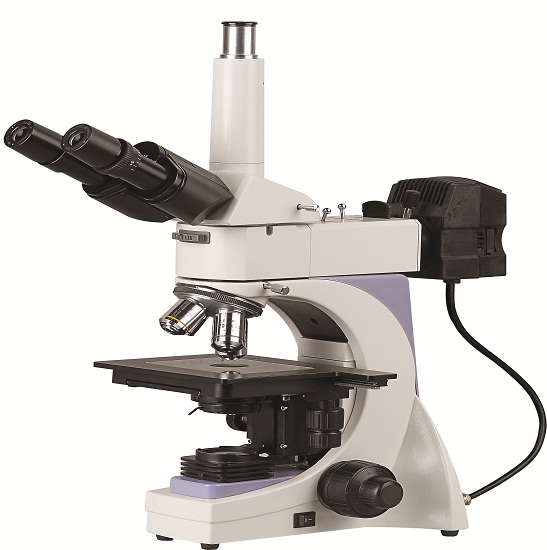

BS-6000AT Metallurgical Microscope
BS-6000AT Metallurgical Microscope
BS-6000AT series metallurgical microscopes are designed for metallography analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.
Introduction
BS-6000A series metallurgical microscopes are designed for metallography analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.
Feature
- Excellent infinite optical system.
- High magnification objective with long working distance.
- Comfortable operation with low position focus knob.
- Easy, safe and reliable lamp replacement device.
Application

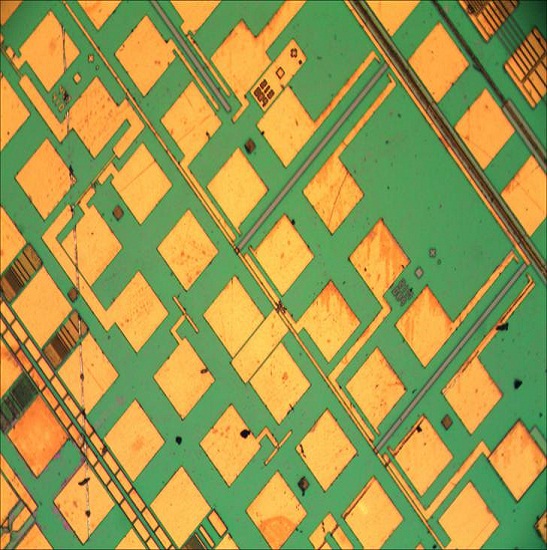

BS-6000A series metallurgical microscopes are widely used in industrial areas for PCB board, LCD display, metal structure observation and inspection. It also can be used in colleagues for metallography education and research.
Specification
| Item | Specification | BS-6000A | BS-6000AT |
| Viewing Head | Seidentopf type binocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm | ● | |
| Seidentopf type trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm, Light distribution: 20:80 | ● | ||
| Eyepiece | WF10×/18mm | ● | ● |
| WF8×/18mm | ○ | ○ | |
| WF10×/18mm with 0.1mm Micrometer & cross hair | ○ | ○ | |
| WF12.5×/15mm | ○ | ○ | |
| Infinite Plan Achromatic Objectives | 4×/0.1/∞/- WD 17.3mm | ● | ● |
| 5×/0.12/∞/- WD 15.5mm | ○ | ○ | |
| 10×/0.25/∞/- WD 10.0mm | ● | ● | |
| 20×/0.40/∞/0 WD 5.8mm | ○ | ○ | |
| 40×/0.60/∞/0 WD 2.9mm | ● | ● | |
| 40×/0.65/∞/0 WD 0.52mm | ○ | ○ | |
| 50×/0.75/∞/0 WD 0.32mm | ○ | ○ | |
| 80×/0.90/∞/0 WD 0.2mm | ○ | ○ | |
| 100×/0.80/∞/0 WD 2mm | ○ | ○ | |
| Nosepiece | Quadruple Nosepiece | ● | ● |
| Stage | Double layer mechanical stage 150×140mm, moving range 75×50mm | ● | ● |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Range 20mm | ● | ● |
| Illumination | Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen lamp, Brightness adjustable | ● | ● |
| Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 3W LED illumination, Brightness adjustable | ○ | ○ | |
| Transmitted Illumination, 6V/20W Halogen Lamp, Brightness Adjustable | ○ | ○ | |
| Filters | Blue, Green, Yellow & Ground filters | ● | ● |
| Polarizing Set | Polarizer and Analyzer | ○ | ○ |
| Specimen Presser | For metallurgical specimen preparation | ○ | ○ |
| Photo Adapter | Used to connect DSLR camera to the microscope | ○ | ○ |
| Video Adapter | 1×, 0.5× C-mount adapter | ○ | ○ |
Note: ●Standard parts, ○Optional parts
BS-6000AT Metallurgical Microscope
| Berat | 12000 gram |
| Kondisi | Baru |
| Dilihat | 141 kali |
| Diskusi | Belum ada komentar |
