BS-6000B Inverted Metallurgical Microscope

Rp 46.893.900
KodeBM600101
Stok Tersedia (1)
Kategori Mikroskop

Indent

Tentukan pilihan yang tersedia!
Pemesanan yang lebih cepat! Quick Order
Bagikan ke

BS-6000B Inverted Metallurgical Microscope

BS-6000B Inverted Metallurgical Microscope

BS-6000B Inverted Metallurgical Microscope

BS-6000B not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

BS-6000B Inverted Metallurgical Microscope

Model:BS-6000B
Magnification:40×-400×
Eyepiece:EW10×
Objective:4×,10×,20×,40×
Nosepiece:Quintuple
Illumination: Kohler
Viewing Head:Trinocular
Focusing:Coaxial coarse

Introduction

BS-6000B not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

BS-6000B Inverted Metallurgical Microscope

Features

  1. Infinite optical system provides excellent optical functions.
  2. With the stable stand structure, advanced stage design and comfortable operation.
  3. Double layer X-Y stage is optional.

Application

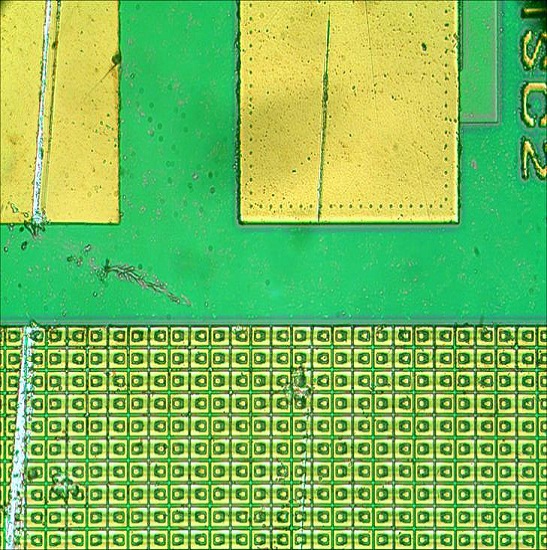

BS-6000B is widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, other non-metallic materials and so on.

Specification

Item Specification BS-6000B
Optical System Infinite Optical System
Viewing Head Trinocular head inclined at 30°, interpupillary distance 48-75mm
Eyepiece High-point, extra wide field eyepiece EW10×/ 20mm
Infinite Plan Achromatic Objective 4×/ 0.1/∞/-    WD 17.3mm
5×/0.12/∞/-    WD 15.4mm
10×/0.25/∞/-   WD 10.0mm
20×/0.40/∞/0   WD 5.8mm
40×/0.65/∞/0   WD 0.52mm
40×/0.60/∞/0   WD 2.9mm
50×/0.75/∞/0   WD 0.32mm
80×/0.90/∞/0   WD 0.2mm
100×/0.80/∞/0  WD 2mm
Nosepiece Quintuple nosepiece
Stage Plain stage with slide clips 160×250mm
Attachable mechanical stage, X-Y coaxial control, moving range 120×78mm
Double layer mechanical stage 226×178mm, Moving range 50×50mm
Auxiliary stage
Focusing Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine Division 0.002mm. Moving range upto 8mm, down 3mm
Kohler Illumination Halogen lamp 6V/ 30W, Kohler illumination
Filter Blue, Yellow, Green and Frosted filters
Polarization Set Polarizer and Analyzer
Specimen Presser For metallurgical specimen preparation
Photo Adapter Used to connect DSLR camera to the microscope
Video Adapter 1×, 0.5× C-mount adapter

Note: ●Standard parts, ○Optional parts

BS-6000B Inverted Metallurgical Microscope

Berat 12000 gram
Kondisi Baru
