BS-6002TR Metallurgical Microscope
Rp 34.000.000| Kode | BM600202 |
| Stok | Tersedia (1) |
| Kategori | Mikroskop |
Indent

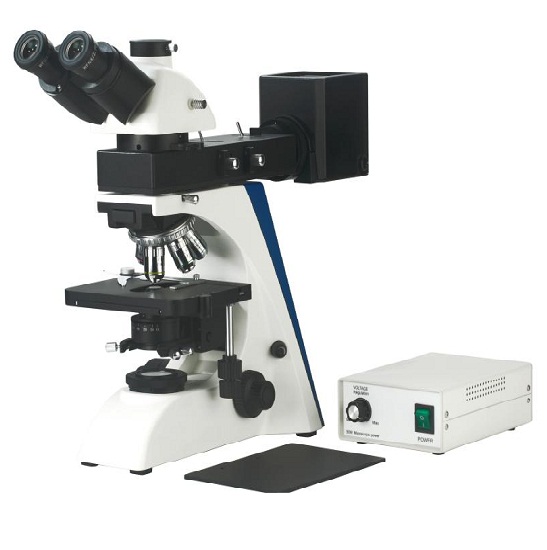

BS-6002TR Metallurgical Microscope
BS-6002TR Metallurgical Microscope
BS-6002TR Series metallurgical microscopes are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.
Introduction
BS-6002R/TR Series metallurgical microscopes are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.
Features
- Infinite optical system provide excellent resolution and definition.
- Infinite long working distance objective, provide wide space for specimens.
- Powerful transmitted and reflected system with Kohler illumination.
- Polarizing attachment and other accessories are available.
Application
BS-6002R/TR series metallurgical microscopes are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.
Specification
| Item | Specification | BS-6002
BR |
BS-6002
BTR |
|
| Optical System | Infinite Optical System | ● | ● | |
| Viewing Head | Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm, Tube diameter: 30mm | ● | ● | |
| Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm, Tube diameter: 30mm. Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece) | ○ | ○ | ||
| Eyepieces | WF10×／22mm (adjustable) | ● | ● | |
| WF10×／22mm (adjustable , reticule 0.1mm) | ● | ● | ||
| Long Working Distance
Infinite Plan Objective
|
5×/0.10 | W.D=24.23mm | ● | ● |
| 10×/0.25 | W.D=18.48mm | ● | ● | |
| 20×/0.40 (S) | W.D=8.35mm | ● | ● | |
| 40×/0.65 (S) | W.D=3.90mm | ○ | ○ | |
| 50×/0.7 (S) | W.D=1.95mm | ● | ● | |
| 80×/0.80 (S) | W.D=0.85mm | ○ | ○ | |
| 100×/0.90 (S) | W.D=1.00mm | ○ | ○ | |
| Nosepiece | Backward Quintuple Nosepiece | ● | ● | |
| Mechanical Stage | Stage size: 200mm × 150mm, Travel range: 77mm × 52mm. Stage fast lowering unit: Up-Down moving range can be increased to 50mm | ● | ||
| Stage size: 182mm × 140mm, Travel range: 77mm × 52mm
Two slid holder, Metal plate size: 200mm x 150mm |
● | |||
| Focus | Coaxial Coarse and Fine Focusing, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 25mm. Tightness adjustment, upper distance limiter | ● | ● | |
| Micrometer | Stage Micrometer 0.01mm | ○ | ○ | |
| Polarizing Unit | Polarizing and Analyzer attachment | ● | ● | |
| Condenser | Abbe N.A. 1.25 with Iris Diaphragm | ● | ||
| Illumination | Reflected Illumination, 12V/50W Halogen lamp (Input voltage: 100V～240V), Field diaphragm | ● | ● | |
| Transmitted Illumination, 6V/20W Halogen lamp (Input voltage: 100V～240V), Field diaphragm, Center adjustable. | ● | |||
| Filter | Blue | ● | ● | |
| Green | ○ | ○ | ||
| Amber | ○ | ○ | ||
| Grey | ○ | ○ | ||
| C-mount Adapter | 1× C-mount | ○ | ○ | |
| 0.5× C-mount (Focus Adjustable) | ○ | ○ | ||
| Packing | Packing Size: 750×360×450mm, Gross Weight: 16 kgs, Net Weight: 12kgs | ● | ● | |
Note: ●Standard Outfit, ○Optional
BS-6002TR Metallurgical Microscope
| Berat | 12000 gram |
| Kondisi | Baru |
| Dilihat | 166 kali |
| Diskusi | Belum ada komentar |
