BS-6020RF Laboratory Metallurgical Microscope

Rp 90.000.000
KodeBM602001
Stok Tersedia (1)
Kategori Mikroskop

Indent

Tentukan pilihan yang tersedia!
Pemesanan yang lebih cepat! Quick Order
Bagikan ke

BS-6020RF Laboratory Metallurgical Microscope

BS-6020RF Laboratory Metallurgical Microscope

BS-6020RF Laboratory Metallurgical Microscope

BS-6020RF metallurgical microscopes are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.

BS-6020TRF Laboratory Metallurgical Microscope

Model:BS-6020RF
Magnification:50×-1000×
Eyepiece:EW10×
Objective:5×,10×,20×,50×,100×
Nosepiece:quintuple
Illumination:Kohler
Viewing Head:Trinocular
Focusing:Coaxial Coarse

Introduction

BS-6020RF metallurgical microscopes are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.

Bestscope Bs-6020trf Laboratory Metallurgical Microscope - China Metallurgical  Microscope, Laboratory Metallurgical Microscope | Made-in-China.com

Feature

  1. Laboratory metallurgical microscope, including bright field, dark field and polarization observation system.
  2. Powerful transmitted and reflected system with Kohler illumination.
  3. Ideal instrument for metallurgical analysis, industry inspection and science research.

Application

BS-6020RF/TRF are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Specification

Item Specification BS-6020RF BS-6020TRF
Optical System Infinite optical system
Viewing Head Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm
Eyepiece Extral wide field eyepiece EW10×/22mm, eyepiece tube Φ30mm
Infinite Plan Achromatic Objective 5×/ 0.12/∞/ – (BF)      WD 15.5mm
10×/ 0.25/∞/ – (BF&DF)  WD 10.0mm
20×/ 0.4/∞/ 0 (BF&DF)   WD 4.3mm
50×/ 0.75/∞/ 0 (BF)     WD 0.32mm
100×/ 0.8/∞/ 0 (BF)     WD 2mm
40×/ 0.65/∞/ 0.17       WD 0.54mm
100×/ 1.25/∞/ 0.17      WD 0.13mm
5×/ 0.12/∞/ – (BF&DF)   WD 12mm
40×/ 0.6/∞/ 0 (BF&DF)   WD 2.9mm
50×/ 0.75/∞/ 0 (BF&DF)  WD 0.32mm
100×/ 0.8/∞/ 0 (BF&DF)  WD 2mm
Maximum Sample Height 30mm
50mm
Reflected Light 24V/100W Halogen light, Brightness adjustable
Kohler illumination and aspherical condenser
Polarizer and analyzer
An integrate device for polarizer and analyzer
Blue, Green, Yellow and Ground glass filter
Transmitted Light Swing-out condenser NA0.9/ 0.25
24V/100W Halogen light and aspherical condenser
Blue filter
Filter ND25, ND6
Focusing Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 30mm
Nosepiece Backward quintuple nosepiece
Stage Double layer mechanical stage(without hole) 186×138mm/ 74mm×50mm
Double layer mechanical stage 186×138mm/ 74mm×50mm
Glass specimen preparation plate
Specimen preparation plate
Slide glass

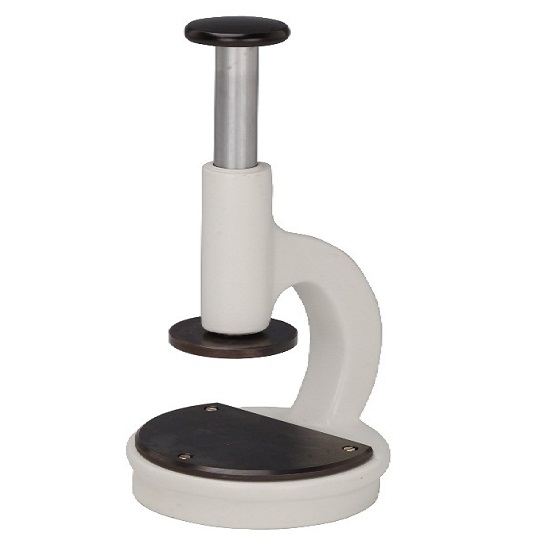

Accessories Specimen Presser
Photo Attachment
Video Attachment, C-mount 1×, 0.5×

Note: ●Standard Outfit, ○Optional

BS-6020RF Laboratory Metallurgical Microscope

Berat 12000 gram
