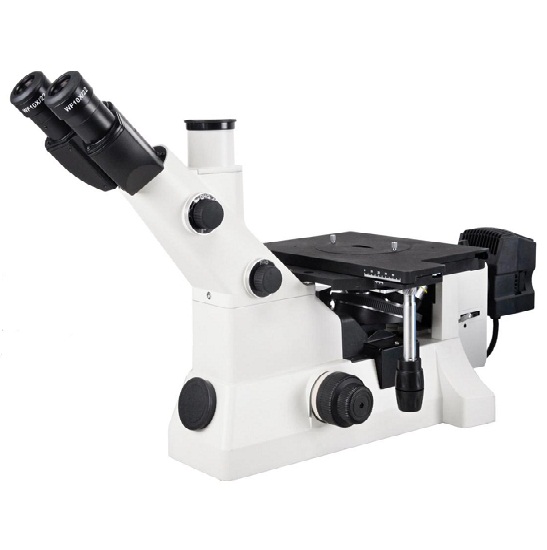

BS-6030 Inverted Metallurgical Microscope

Rp 108.000.000
KodeBM603001
Stok Tersedia (1)
Kategori Mikroskop

Indent

Tentukan pilihan yang tersedia!
Pemesanan yang lebih cepat! Quick Order
Bagikan ke

BS-6030 Inverted Metallurgical Microscope

BS-6030 Inverted Metallurgical Microscope

BS-6030 Inverted Metallurgical Microscope

BS-6030 Inverted Metallurgical Microscope is a research level metallurgical microscope, it can identify and analyze not only a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating and so on. Digital cameras can be added to the trinocular tube to take images and make image analysis. DIC observation is optional.

Model:BS-6030
Magnification:50×-1000×
Eyepiece:WF10×
Objective:5×,10×,20×,50×,100×
Nosepiece:quintuple
Illumination:Kohler
Viewing Head:Trinocular
Focusing:Coaxial coarse

Introduction

BS-6030 Inverted Metallurgical Microscope is a research level metallurgical microscope, it can identify and analyze not only a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating and so on. Digital cameras can be added to the trinocular tube to take images and make image analysis. DIC observation is optional.

Feature

  1. Infinite optical system provides excellent optical functions.
  2. DIC observation is optional.
  3. Meet most of your requirements by high performance optical system, technological innovation and high stability.

Application

BS-6030 can be used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Specification

Item Specification BS-6030
Optical System Infinite optical system
Viewing Head Siedentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm
Extra Wide Field Eyepiece WF10×/ 22mm
WF10×/ 20mm Eyepiece with scale of cross hair
WF15×/ 16mm
WF20×/ 12mm
Infinite LWD Plan Achromatic Objective 5×/0.12/∞/0 (BF/DF)    LWD 10.0mm
10×/0.25/∞/0 (BF/DF)   LWD 10.0mm
20×/0.40/∞/0 (BF/DF)   LWD 5.0mm
50×/0.75/∞/0 (BF/DF)   LWD 1.3mm
100×/0.90/∞/0 (BF/DF)  LWD 0.7mm
Nosepiece Backward quintuple nosepiece
Stage Double layer mechanical stage 226×178mm, Moving range 40mm×40mm
Small stage plate, Φ20mm, Φ30mm, water drop type
Focusing Coaxial coarse & fine adjustment, fine division 2μm, move up 1mm, down 7mm
Kohler Reflected Illumination 12V/50W Halogen light, center and brightness adjustable
Polarizer and analyzer
DIC attachment
Built-in Green, Blue, Yellow, Gray and Ground glass filters
Optional Accessories Photo Adapter(Used to connect Nikon/Canon DSLR camera to the microscope)
0.5× C-mount Video Adapter
Micrometer scale 0.01mm

Note: ●Standard parts  ○Optional parts

BS-6030 Inverted Metallurgical Microscope

Berat 12000 gram
Kondisi Baru
