BS-7000B Inverted Fluorescent Biological Microscope
Rp 108.000.000| Kode | BM701101 |
| Stok | Tersedia (1) |
| Kategori | Mikroskop |
Indent
BS-7000B Inverted Fluorescent Biological Microscope
BS-7000B Inverted Fluorescent Biological Microscope
BS-7000B Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture. Infinite Optical System gives excellent Optical performance. Excellent high resolution fluorescent objectives are optional to generate high quality fluorescent images. This microscope can be your best assistant in laboratory research.
Introduction
BS-7000B Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture. Infinite Optical System gives excellent Optical performance. Excellent high resolution fluorescent objectives are optional to generate high quality fluorescent images. This microscope can be your best assistant in laboratory research.
Feature
- Perfect image with infinite optical system.
- High resolution fluorescent objectives are optional for excellent fluorescent images.
- Advanced and precision lamp housing reduces the light leak.
- Reliable power supply with digital display and timer.
- Innovative structure and sharp Image is perfect for viewing cell tissue.
Application
BS-7000B Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture. It is widely used in universities, hospitals and life science labs for disease examination, immune diagnosis and scientific research.
Specification
| Item | Specification | BS-7000B | ||||
| Optical System | Infinite Optical System | ● | ||||
| Viewing Head | Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm | ● | ||||
| Eyepiece | High-point, Extra Wide Field Eyepiece EW10×/ 22 | ● | ||||
| Nosepiece | Quintuple Nosepiece | ● | ||||
| Objective | LWD Infinite Plan Objective | 4×/0.1, W.D.= 17.3mm | ● | |||
| 10×/0.25, W.D.= 10mm | ○ | |||||
| 20×/0.4, W.D.= 5.1mm | ○ | |||||
| 40×/0.6, W.D.= 2.1mm | ● | |||||
| Infinite Plan Phase Objective | PH 10×/0.25, W.D.= 10mm | ● | ||||
| PH 20×/0.4, W.D.= 5.1mm | ● | |||||
| PH 40×/0.6, W.D.= 2.1mm | ○ | |||||
| Infinite Plan Fluorescent Objective | 4×/0.13, W.D.= 16.3mm | ○ | ||||
| 10×/0.30, W.D.= 12.4mm | ○ | |||||
| 20×/0.5, W.D.= 1.5mm | ○ | |||||
| 40×/0.6, W.D.= 2.2mm | ○ | |||||
| Condenser | ELWD Condenser NA 0.3, LWD 72mm (Without condenser 150mm) | ● | ||||
| Telescope | Centering Telescope(Φ30) | ○ | ||||
| Phase Annulus | 10×-20×, 40× Phase Annulus Plate (Fixed) | ● | ||||
| 10×-20×, 40× Phase Annulus Plate (Adjustable) | ○ | |||||
| Stage | Plain stage 160×250 mm | ● | ||||
| Glass Insert Plate | ● | |||||
| Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm | ○ | |||||
| Auxiliary Stage 70×180mm | ● | |||||
| Terasaki Holder | ○ | |||||
| Petri Dish Holder Φ35mm | ○ | |||||
| Slide Glass Holder Φ54mm | ○ | |||||
| Petri Dish Holder Φ90mm | ○ | |||||
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.2mm/Rotation, Moving Range up 8mm, down 3mm | ● | ||||
| Transmitted Illumination | 6V/30W Halogen Lamp | ● | ||||
| 3W LED lamp | ○ | |||||
| Filter | Blue, Green and Ground glass filters, Diameter 45mm | ● | ||||
| Photo Attachment | Photo Adapter for Nikon and Canon DSLR cameras | ○ | ||||
| Video Adapter | Video Adapter 1× / 0.5× C-mount | ○ | ||||

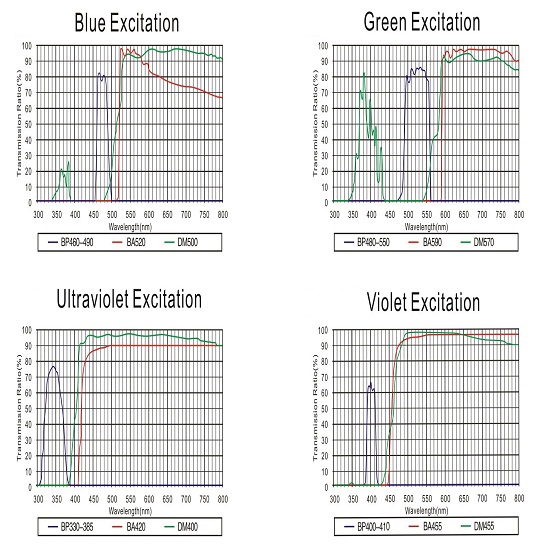

| Reflected Light Source | Excitation | Dichroic Mirror | Barrier Filter | |||
| Blue Excitation | BP460～490 | DM500 | BA520 | ● | ||
| Blue Excitation (B1) | BP460～495 | DM505 | BA510-550 | ○ | ||
| Green Excitation | BP480～550 | DM570 | BA590 | ● | ||
| Ultraviolet Excitation | BP330～385 | DM400 | BA420 | ○ | ||
| Violet Excitation | BP400～410 | DM455 | BA455 | ○ | ||
| Red Excitation | BP620~650 | DM660 | BA670-750 | ○ | ||
| Lamp | 100W HBO Ultra Hi-voltage Spherical Mercury Lamp | ● | ||||
| Protection barrier | Barrier to Resist the Ultraviolet Light | ● | ||||
| Power Supplier | Power Supplier NFP-1, 220V/ 110V Voltage interchangeable, Digital Display | ● | ||||
| Immersion Oil | Fluorescent Free Oil | ● | ||||
| Filter | Neutral ND25/ ND6 Filter | ○ | ||||
| Centering Target | ○ | |||||
Note: ● Standard Outfit, ○ Optional
