BSC-300 Comparison Microscope

 Rp 236.000.000
KodeBM311002
Stok Tersedia (1)
Kategori Mikroskop

Indent

Tentukan pilihan yang tersedia!
Pemesanan yang lebih cepat! Quick Order
Bagikan ke

BSC-300 Comparison Microscope

BSC-300 Comparison Microscope

BSC-300 Comparison Microscope

BSC-300 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, jointing and overlapping methods, two (or more two) objects can be compared together. BSC-300 has clear image, high resolution and can identify tiny differences between objects accurately. BSC-300 has excellent optical performance and complete comparison function, it is suitable for various comparison demands, so it has a very wide range of applications. It is basically used in forensic science, police schools and related departments.

China Bestscope Bsc-300 Comparison Microscope with Bullet Holder - China Filters, Polarizing Attachment

Model:BSC-300
Magnification:5×~120×
Eyepiece:WF10×,20×
Objective:0.5×, 1×, 1.5×, 2×, 4×, 6×
Stage:X-54mm, Y-54mm, Z-54mm
Illumination: LED
Viewing Head:Trinocular
BSC-300 Comparison Microscope

Introduction

BSC-300 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, jointing and overlapping methods, two (or more two) objects can be compared together. BSC-300 has clear image, high resolution and can identify tiny differences between objects accurately. BSC-300 has excellent optical performance and complete comparison function, it is suitable for various comparison demands, so it has a very wide range of applications. It is basically used in forensic science, police schools and related departments.

BSC-300 Comparison Microscope

Feature

  1. Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
  2. With sextuple nosepiece, comes with 0.5×, 1×, 1.5×, 2×, 4×, 6× objectives, nosepiece has stop clicks, comfortable to change the objectives.
  3. Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-62mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° – 60 °.
  4. Two stages can be adjusted horizontally at the same time, moving range: 0-60mm.
  5. Coarse lifting range of 0 – 60mm.
  6. Equipped with 12V/50W air-cooled high power LED lamps, light intensity is adjustable.

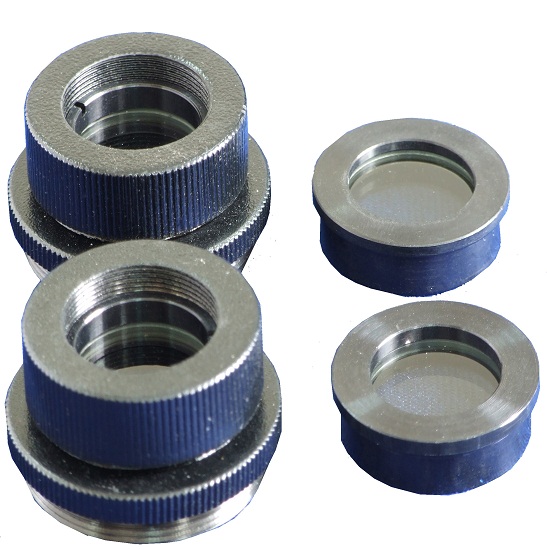

  7. Polarizing attachment, used to eliminate stray and glare light.
  8. Coaxial illumination device(optional), used for observation of deep hole, small hole and smooth surface.
  9. With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.

10 With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.

Application

BSC-300 is the ideal device for Public Security Bureaus, procuratorates, courts and their colleges to compare and identify the bullet, tool marks, fingerprints, seals, text, signatures, drawings, and bank notes. It also can be applied to electronic, biochemical, agriculture, archaeology, banking, Customs and industries or sectors who have the requirements to detect or identify objects.

BSC-300 Comparison Microscope

Specification

Item Specification BSC-300
Total Optical Magnification 5×~120× ●
Viewing Head Seidentopf Trinocular Head, Inclined at 45°, Interpupilary Distance 55-75mm ●
Eyepiece Wide Field Eyepiece WF10×/ 22mm, diopter adjustment ●
Wide Field Eyepiece WF20×/ 12mm, diopter adjustment ●
Field of View Φ2mm~Φ60mm
Comparison Mode Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation ●
Objective 0.5×, 1×, 1.5×, 2×, 4×, 6× ●
Auxiliary Objective 0.4×, 2× Auxiliary Objective (with auxiliary objective, the total magnification can be extended to 2× ~ 240×) ○
Nosepiece Sextuple nosepiece ●
Stage Manually operate stage, moving range: X-54mm, Y-54mm, Z-54mm ●
Two stage horizontal moving range: 60mm, The coarse vertical lifting range: 60mm ●
Illumination High power LED illumination, brightness and angel adjustable ●
Side illumination, 12V/50W air cooled reflecting lamps ●
Polarizing attachment ●
Coaxial illumination device ○

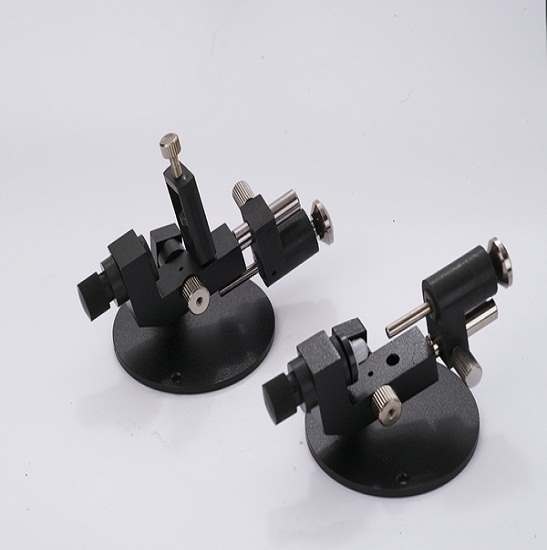

Accessories Bullet Holder ●
Polarizing attachment ●

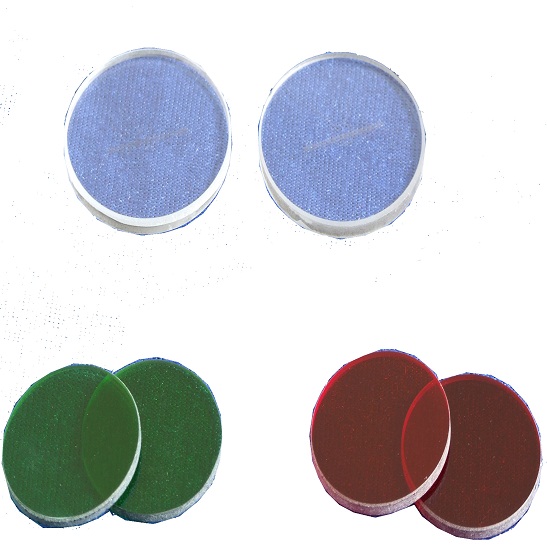

Blue, Green and red filters ●
Photo attachment for DSLR digital camera(Nikon, Canon) ●
C -mount for microscope digital cameras ●
Dimension 39(L) ×38(W) ×70(H)cm ●

Eyepieces and Objective Parameter

Objective Magnification/FOV(mm) Working Distance

(mm)
10× Eyepiece 20× Eyepiece
0.5× 5×/Φ60 10×/Φ24 143
1× 10×/Φ21 20×/Φ12 102
1.5× 15×/Φ15 30×/Φ8
2× 20×/Φ11 40×/Φ6
4× 40×/Φ6 80×/Φ3
6× 60×/Φ3.9 120×/Φ2

BSC-300 Comparison Microscope

Berat 12000 gram
